Made in USA by Real Racers
  • Street/Strip Switch Panel and Relay Module Combo

    #1 rocker is always Ignition. #2-8 can be whatever you want. Also list if you need any of them momentary rockers.

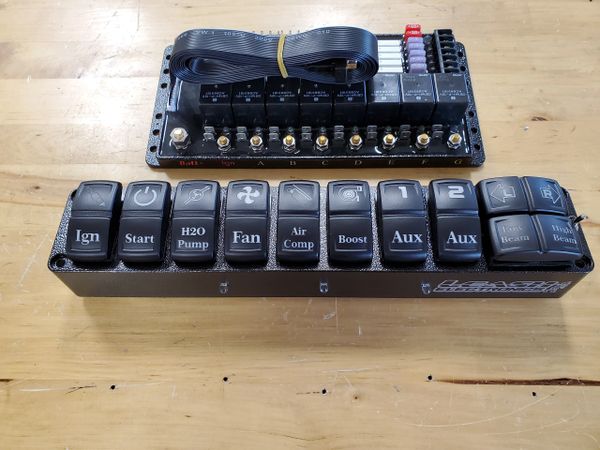

    Street Strip Switch Panel and Relay Module Combo

    Brand NEW upgrade. Now the #8 relay is a Solid State Relay. So the #8 relay can be used for anything including being pulsed for

    things like transbrake bumping or progressive nitrous driver. Can also be setup for positive or negative trigger.

    You will need to type in the box how you want the switches labeled. Note that the first switch is the ignition switch.

    Street/Strip wiring board
    features: 8x 70 amp relays with heavy duty fuse sockets (one with built in optional transbrake safety for use with nitrous system), fused transbrake relay. Fused lighting outputs including high beam headlights, low beam headlights, turn signal blinkers, brake light, park light, 3 fuse batt+ outputs, 5 fused ignition voltage outputs. Board measures 9.375" x 4.5", billet aluminium base. This is like my 8 relay board, prostreet board and single stage nitrous board all in one compact unit. J-case fuses not included.

    You can now add a ESTOP button. This is a safety feature so in case of emergency you can reach your switch panel and push the button to kill power to the switch panel

    so that everything its controlling will shut off.  It's easier than trying to flip all the rockers off in a hurry.
