Wiring your nitrous kit has NEVER been so easy or fast!! Simply connect your battery positive and negative to the board, connect you 12volt power from your throttle switch or manual nitrous button, connect you transbrake or clutch 12volt signal for nitrous safety so that your nitrous will not come on it your on your transbrake or have your clutch engaged, connect your 12volt purge signal from your purge button, then connect your nitrous and purge solenoids to the board and you done!!!

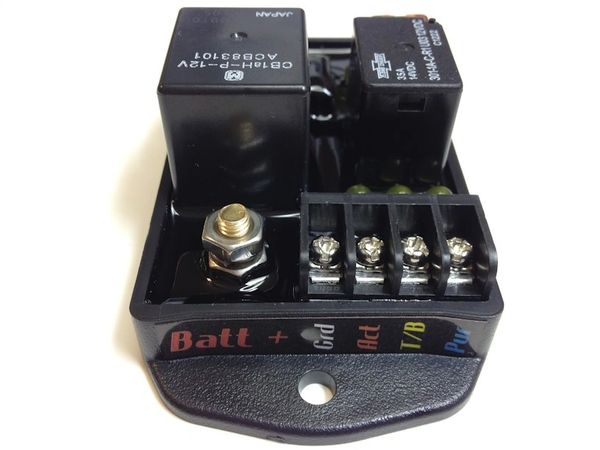

Board Features: On board 70 amp relay for nitrous solenoids, 35amp relay for the purge solenoid, indicator LED's for easy troubleshooting, built in transbrake safety relay to prevent nitrous activation while on the transbrake of clutch, and board uses heavy duty J-Case automotive fuses. J-case fuses not included.
Fuses available in FMX/J case fuse catagory
Also makes wiring Nitrous Progressive Controllers simple too!! Check out the wiring diagram in the pics.
Now you have an option of ordering with the Activation input setup for ground triggering for use with efi outputs of window switches that have ground triggers. If you are wiring this with a NMS1000 progressive you will need the ground triggered option.
